Model: A Frame House 03
Snowland A3 – Modular A Frame House
The A-Type Snowland is a highly efficient modular a frame house manufactured by DEEPBLUE SMARTHOUSE. Measuring 4267mm in width, 5486mm in length, and 6400mm in height, this structure provides a total living area of 30.68 square meters.
Enquire now
Ask about this home and the available quote scope.
Explore the layout
Rooms
Bedrooms1
Bathrooms1
Garages0
Area
Total area30.68 m²
Dimensions
Length5.486 m
Width4.267 m
More about this home
The A-Type Snowland: A Functional Modular A Frame House
The architectural design is engineered to maximize interior utility within a compact footprint, making it a practical solution for remote cabins, outdoor accommodations, or small residential units.
Interior Layout and Illumination

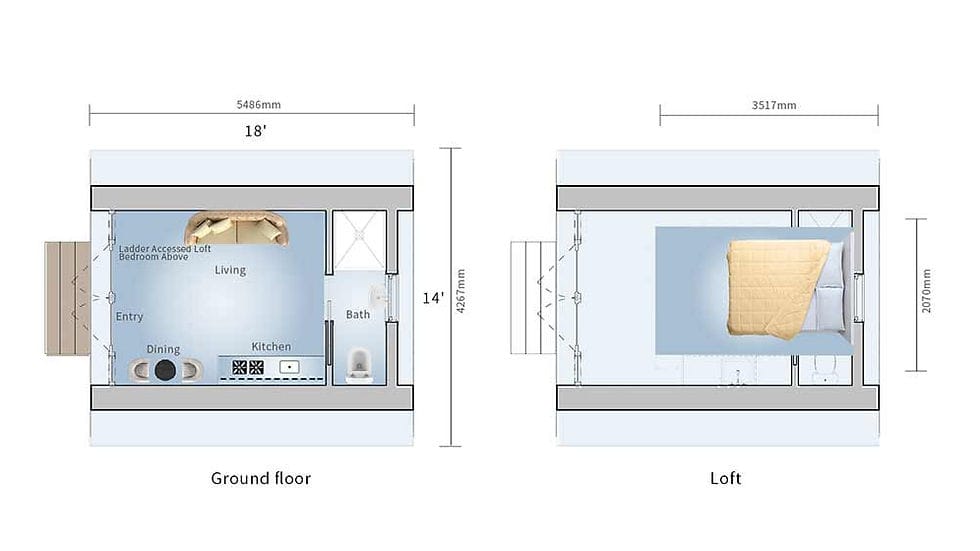

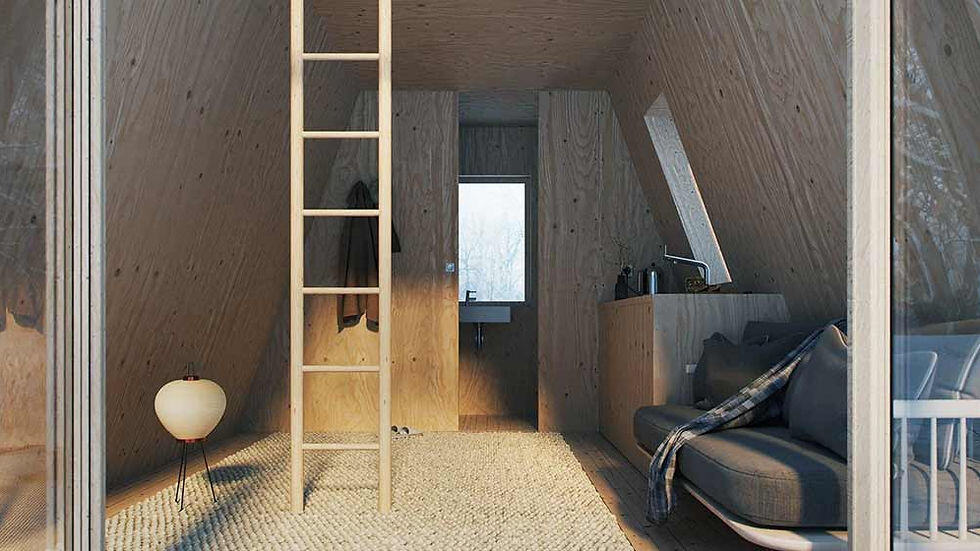

The floor plan of this modular a frame house is divided between a primary main level and an upper sleeping area. The 23.4-square-meter ground floor contains a central living space, a fully equipped kitchen, and a bathroom outfitted with standard modern fixtures.

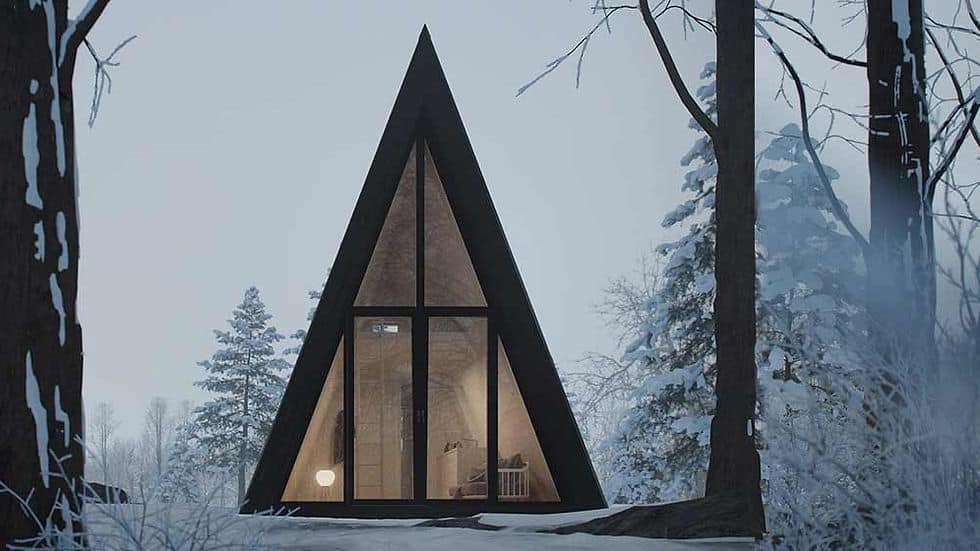

Above, a 7.28-square-meter loft serves as a dedicated bedroom space suitable for an individual, a couple, or a small family. A defining feature of the design is a full wall of glass on the front facade, which ensures the interior receives ample natural light while providing unobstructed views of the surrounding environment.
Cold-Formed Steel Construction
Drawing on over 14 years of manufacturing experience, DEEPBLUE SMARTHOUSE constructs the A-Type Snowland utilizing advanced Cold-Formed Steel (CFS) framing. This precision-engineered material offers distinct structural and environmental advantages compared to traditional wood or concrete construction.
- Dimensional Stability: The steel frame will not expand, contract, warp, or crack due to changes in moisture or harsh weather exposure. - Fire Safety: CFS is completely non-combustible, providing a vital safeguard against structural fires. - Lightweight Efficiency: High tensile strength paired with low weight makes the materials easier to transport and faster to assemble on-site. - Sustainability: The steel utilized in the framework is 100% recyclable, supporting eco-conscious construction practices.
Product Parameters
Parameter · Specification · · Name · A-Type Snowland (A Frame House 03) · · Dimensions · W 4267 x L 5486 x H 6400mm · · Ground Floor Area · 23.4㎡ · · Loft Area · 7.28㎡ · · Total Area · 30.68㎡ ·
