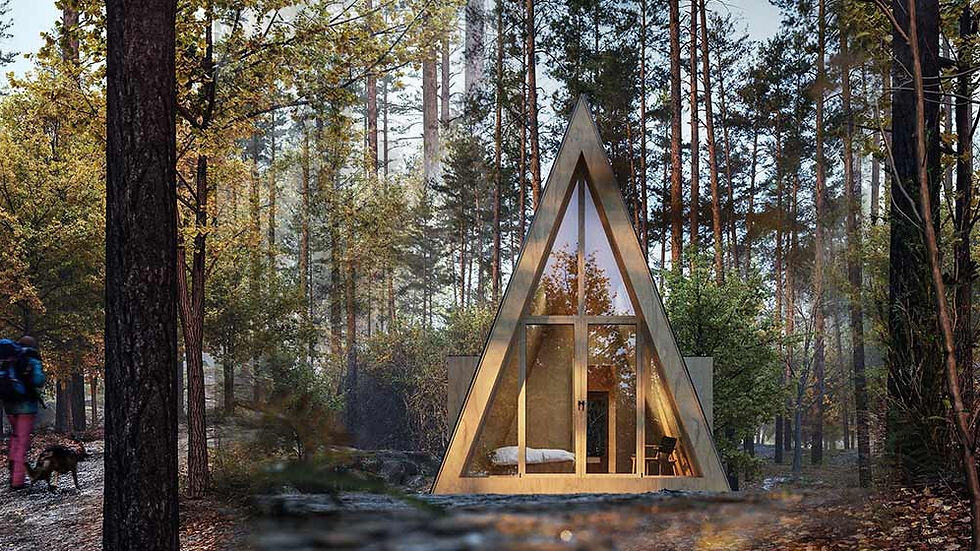

A-Frame Prairie A4 – One Bedroom Light Steel Frame House
Manufactured by DEEPBLUE SMARTHOUSE, the A-Frame Prairie is a practical and compact living solution designed for natural environments. Measuring 4267mm in width, 8534mm in length, and 6401mm in height, this 1-bedroom light steel frame house provides a total living area of 36.41 square meters. It serves as an excellent tiny home, vacation rental, or remote cabin, offering a highly functional layout within a minimal footprint.
Enquire now
Ask about this home and the available quote scope.
Explore the layout
Rooms
Bedrooms1
Bathrooms1
Garages0
Area
Total area36.41 m²
Dimensions
Length8.534 m
Width4.267 m
More about this home
Smart Interior Layout and Natural Light

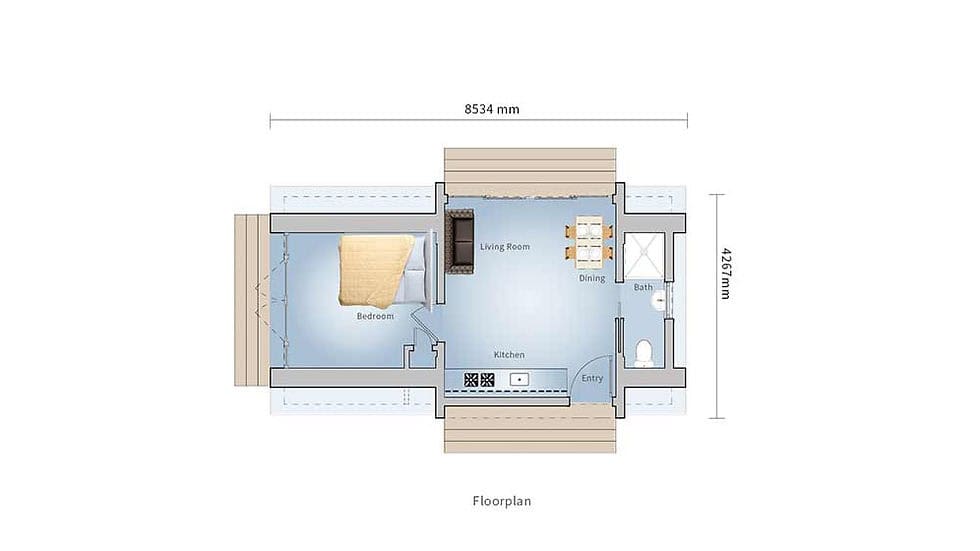

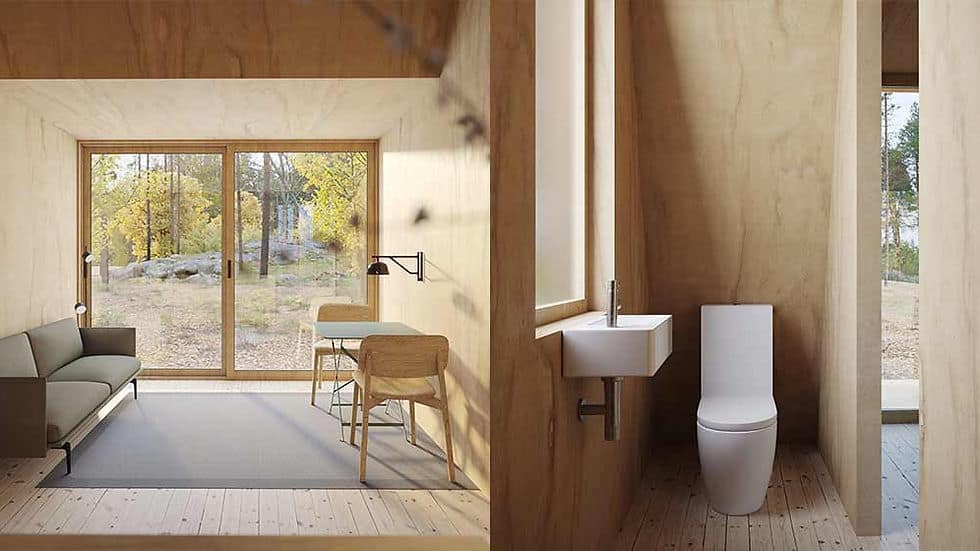

Despite its compact size, the A-Frame Prairie features a thoughtfully optimized interior that maximizes both space and utility. The floor plan efficiently incorporates a central living area, a fully equipped modern kitchen, one dedicated master bedroom, and a full bathroom outfitted with a high-quality shower.

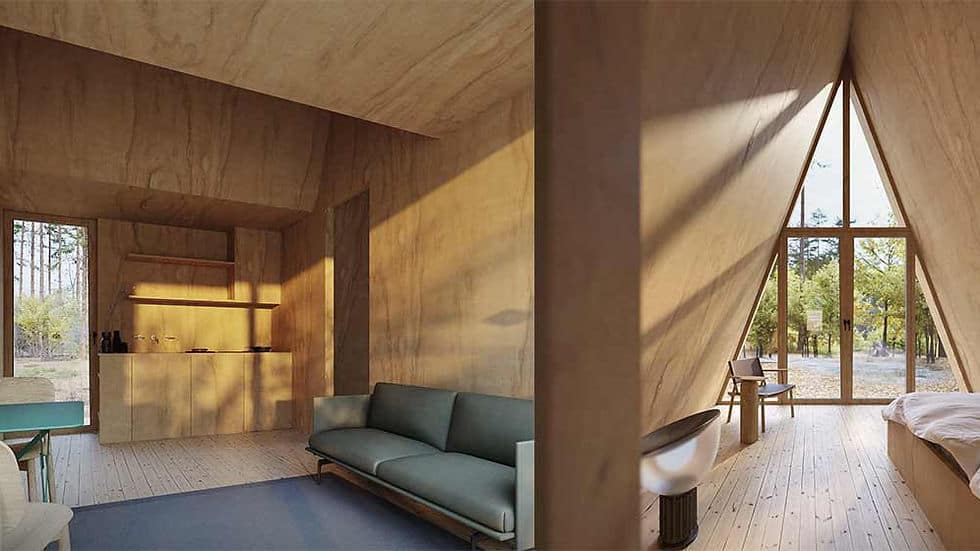

A defining architectural feature of this 1-bedroom light steel frame house is its high ceilings combined with a full wall of glass on the front facade. This design strategy visually expands the living area, allowing abundant natural light to fill the interior while providing unobstructed views of the surrounding landscape.
Reliable Cold-Formed Steel Construction
Drawing on over 14 years of specialized manufacturing experience, DEEPBLUE SMARTHOUSE constructs this home utilizing advanced Cold-Formed Steel (CFS) framing technology. This precision-engineered system offers superior durability and overall performance when compared to traditional wood or concrete construction methods.
- Exceptional Durability: The steel frame maintains strict dimensional stability; it will never warp, split, crack, or creep under changing moisture levels or harsh weather. - Fire Resistance: Composed of completely non-combustible materials, the structural frame ensures a high level of fire safety. - Lightweight Efficiency: The high tensile strength and low weight of CFS make transportation and on-site assembly remarkably fast and cost-effective. - Sustainable Building: The steel used is 100% recyclable, making this home a highly eco-conscious and energy-efficient choice.
Product Parameters
Parameter · Specification · · Name · Prairie (A Frame House 04) · · Dimensions · W 4267mm x L 8534mm x H 6401mm · · Total Area · 36.41㎡ · · Layout · 1 living, 1 kitchen, 1 bedroom, 1 bath ·
